Wuxi, China¨C Wuxi XinDeBao has recently completed a successful flex coupling durability test program with a new simulation table specifically designed by Moog to handle smaller payloads of up to 100 kg. The Hydraulic Simulation Table 100 kg, (H-ST-100), is a new addition to Moog Simulation Table solutions, designed to meet XinDeBao¡¯s specifications for the testing of automobile exhaust pipes. It is also capable of performing durability evaluations of other small vehicle components. The Moog Simulation Table is available in electric or hydraulic versions depending on the performance required.
With the Moog H-ST-100 test solution, XinDeBao can conduct flex coupling component durability tests to simulate the relevant movements of two boundaries (engine manifold end and exhaust pipe end) in 6 degrees of freedom (DOF) from a real-time time history domain. ¡®Time history files¡¯ are simulated through the Moog Test Controller and Replication and Runner application software, to accurately replicate any specific road conditions needed for the tests. The test system is very compact and provides excellent accessibility during testing.

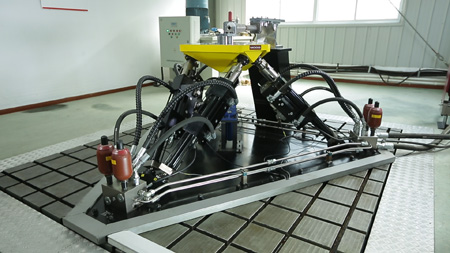

Picture 1 Moog Hydraulic Simulation Table 100 kg in Wuxi XinDeBao, China

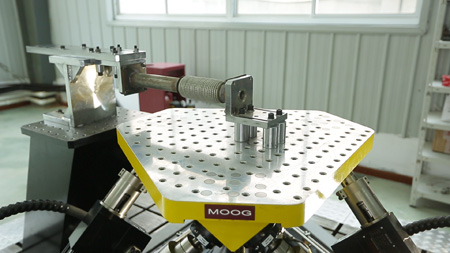

Picture 2 New Moog Hydraulic Simulation Table being tested in Wuxi XinDeBao, China
