QD stone mill 3D stone processing

QD Stone Mill is an innovative industrial robotic solution for machining stone, marble and granite products. QD Stone Mill embodies all the latest and most advanced software for industrial robotics, from CAD/CAM applications for generating offline work programs to complex but intuitive and user-friendly applications for supporting the on-board operator interface. QD Stone Mill delivers maximum versatility, high productivity, excellent reliability and the quickest possible return on investments.

Applications

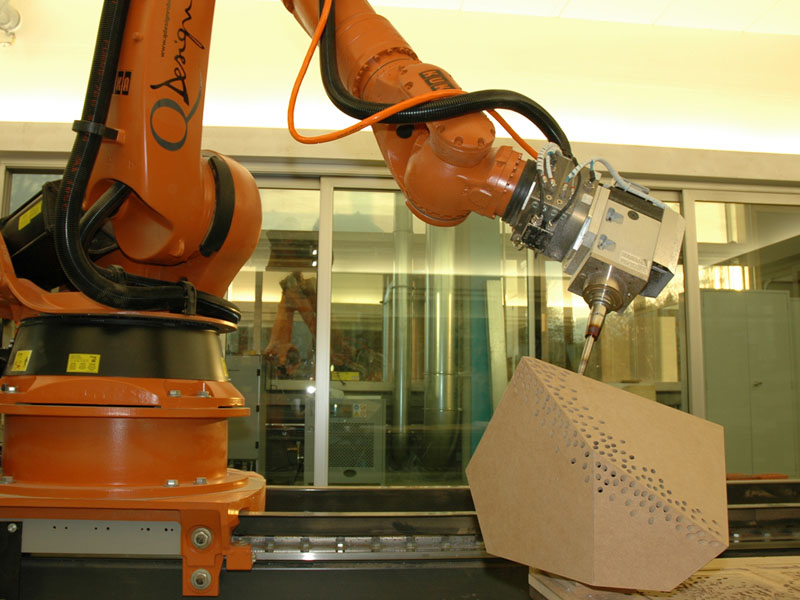

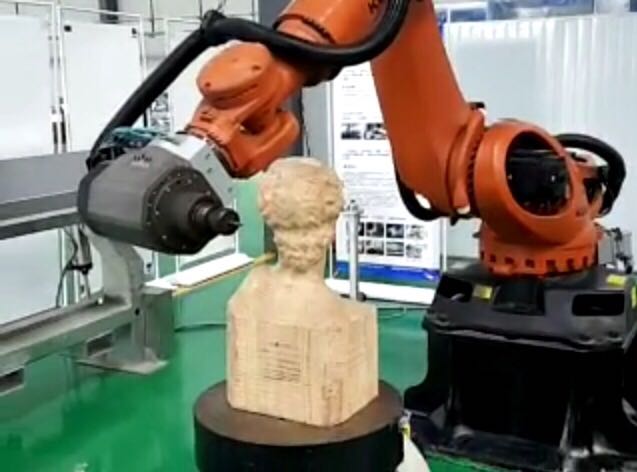

QD stone mill allows process operations using cutting and milling technologies natural stone, marble and granite work pieces to manufacture complex geometry and large dimensions architectural, art or furniture objects

Technical features

• Easy to use technology

• CAD/CAM programming

• 3D scanners integration

• Spindle power up to 50 KW

• ISO 40 and ISO 50 tool holders

• Automatic tool change

• Automatic tool length measurement

• Adaptive force/speed control

• Disk usable up to 800 - 1000 [mm] diameter

• Fix table up to 30 TONS

• Rotating table up to 15 TONS

• Rotating and sliding table up to 30 TONS
