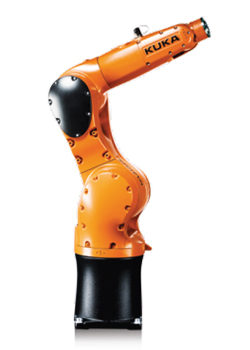

Thanks to new waterproofing, the KR AGILUS is also right at home under intensive outdoor production conditions. Stable stainless steel covers have replaced plastic parts, and resistant surface treatments and additional seals in the interior of the six-axis robot enable it to be used in a machine tool environment, for example. The waterproof version of the KUKA small robot complies with the higher protection rating IP67.

• Payload                                        6 kg

• Working envelope Max. reach    706,7 mm

• Number of axes                           6

• Repeatability                               ±0,03 mm

• Weight                                         50 kg

• Mounting positions                     Floor, ceiling, wall

• Controller                                     KR C4 compact

• Protection class                            IP 67

Suitable for this application

• Handling, loading and unloading

• Packaging and order picking

• Other handling operations

• Metal casting machines, foundry plants

• Other coating operations

• Assembly

• Fastening

• Plastics processing machines

• Inserting, mounting

• Other assembly/disassembly operations

• Forging plants

• Forming machine tools

• Cutting machine tools

• Handling for other machines

• Palletizing
