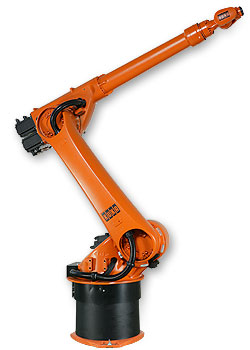

There are low-payload applications in which the reach is a decisive factor. For such cases, KUKA offers you the L models KR 16 L6-2, with a reach of up to 1.9 m, and KR 30 L16-2 with a reach of up to 3.1 m.

• Payload                                       16 kg

• Supplementary payload              45 kg

• Working envelope Max. reach    3102 mm

• Number of axes                           6

• Repeatability                                <±0,07 mm

• Weight                                         700 kg

• Mounting positions                     Floor, ceiling

• Controller                                     KR C4

Suitable for this application

• Handling, loading and unloading

• Packaging and order picking

• Other handling operations

• Painting, surface treatment

• Metal casting machines, foundry plants

• Application of adhesives and sealants

• Other coating operations

• Assembly

• Fastening

• Other applications

• Forging plants

• Cutting machine tools

• Handling for other machines

• Measuring, testing and inspection

After consultation with KUKA

• Machining

• Plastics processing machines
