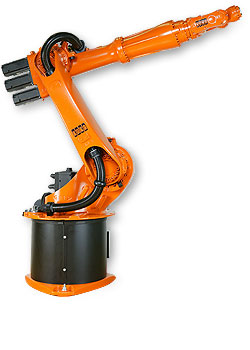

There are low-payload applications in which the reach is a decisive factor. For such cases, KUKA offers you the L models KR 16 L6-2, with a reach of up to 1.9 m, and KR 30 L16-2 with a reach of up to 3.1 m.

• Payload                                        6 kg

• Supplementary payload              10 kg

• Working envelope Max. reach    1911 mm

• Number of axes                           6

• Repeatability                                <±0,05 mm

• Weight                                         240 kg

• Mounting positions                     Floor, ceiling

• ControllerKR                                C4

Suitable for this application

• Handling, loading and unloading

• Packaging and order picking

• Other handling operations

• Arc welding

• Soldering

• Metal casting machines, foundry plants

• Other machining operations

• Plastics processing machines

• Inserting, mounting

• Other assembly/disassembly operations

• Forming machine tools

• Cutting machine tools

• Handling for other machines

• Measuring, testing and inspection

• Palletizing

After consultation with KUKA

• Welding and soldering

• Other welding processes

• Machining

• Assembly

• Other applications

• Forging plants
