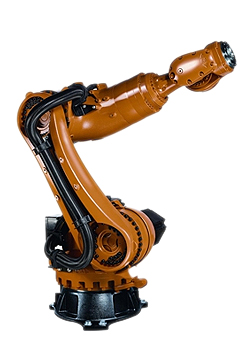

The KR 120 R1800 nano has a payload capacity of 120 kg and a reach of approx. 1800 mm. As the representative of a new generation of extremely compact process robots, this robot is especially well suited for use in spot welding and boasts outstanding process results. The swingover axis 3 allows for a large work envelope, with very good accessibility in confined spaces. This is, for example, extremely helpful for tip dressing.

• Payload                                       120 kg

• Supplementary payload              50 kg

• Working envelope Max. reach    1803 mm

• Number of axes                           6

• Repeatability                                ±0,06 mm

• Weight                                         684 kg

• Mounting positions                     Floor, ceiling

• Controller                                     KR C4

• Protection class                            IP 65

Suitable for this application

• Handling, loading and unloading

• Packaging and order picking

• Other handling operations

• Welding and soldering

• Arc welding

• Spot welding

• Laser welding

• Other welding processes

• Soldering

• Painting, surface treatment

• Metal casting machines, foundry plants

• Application of adhesives and sealants

• Other coating operations

• Machining

• Laser cutting

• Waterjet cutting

• Machining

• Other machining operations

• Assembly

• Fastening

• Plastics processing machines

• Inserting, mounting

• Other assembly/disassembly operations

• Other applications

• Forging plants

• Forming machine tools

• Cutting machine tools

• Handling for other machines

• Measuring, testing and inspection

• Palletizing

After consultation with KUKA

• Painting, enameling

• Service applications
